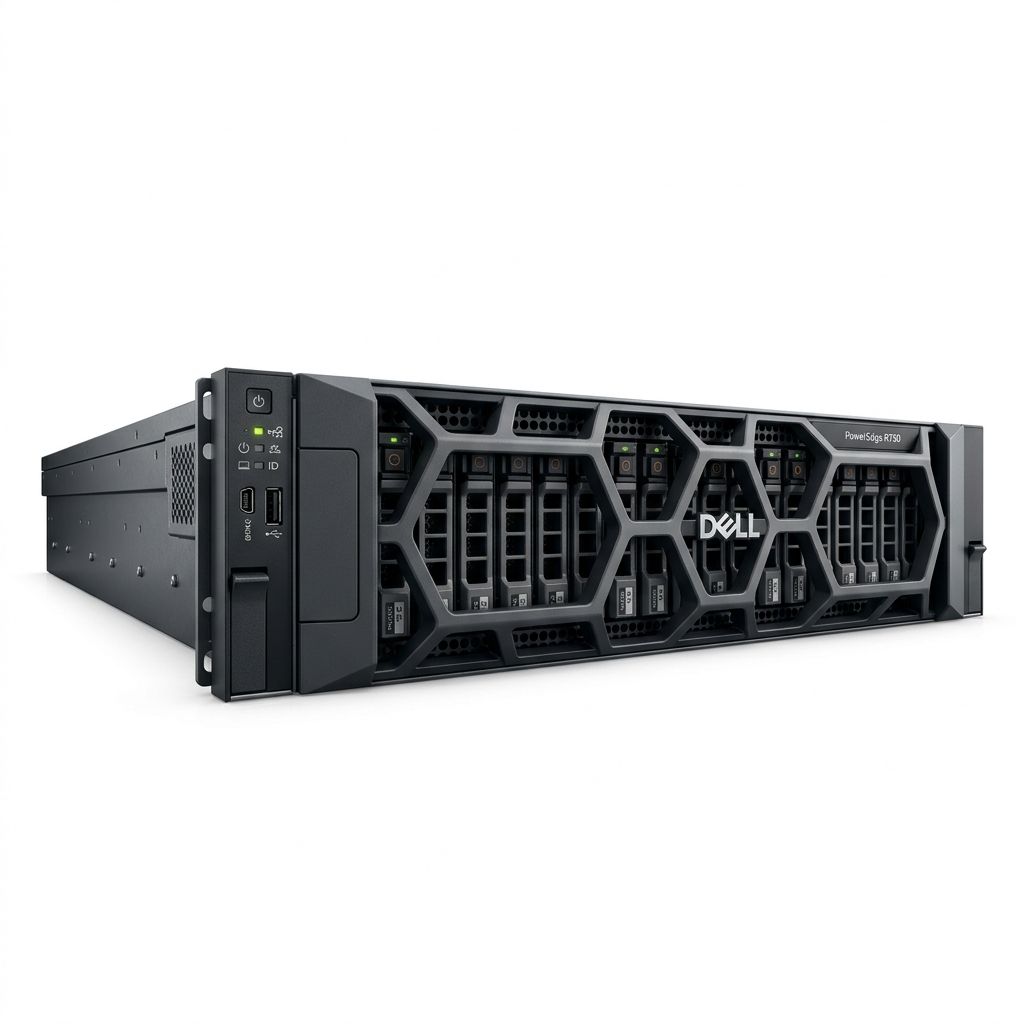

| Server Model | Dell PowerEdge R730 R740 R750 R760XS XD |
| Processor | Up to two 5th generation Intel Xeon scalable processors (up to 28 cores) and 4th generation Intel Xeon scalable processors (up to 32 cores per processor) |
| Memory | Up to 16 DDR5 RDIMMs (up to 1TB supported) NVDIMM No DIMM Speed: up to 4800 MT/S |
| Memory controller |
• Internal controller: PERC H965, PERC H755, PERC H755N, PERC H355, HBA355i • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSD or USB • External HBA (non-RAID): HBA355e; Software RAID: S160 |
| GPU options | 2 x 75 W SWV, LP |
| PCIe |
• Single CPU configuration: up to 4 PCIe slots (2x8 5.0, 1x16 4.0, 1x8 4.0) • Dual CPU configuration: up to 6 PCIe slots (2 x16 5.0, 2 x16 4.0, 3 x8 4.0) |
| Hot-swappable redundant power supplies |
• 1800 W Titanium grade 200-240 VAC or 240 VDC • 1400 W Platinum class 100-240 VAC or 240 VDC • 1400 W Titanium grade 277 VAC or HVDC (HVDC stands for high voltage DC with 336V DC) • 1100 W Titanium grade 100-240 VAC or 240 VDC • 1100 W -(48V - 60V) DC • 800 W Platinum grade 100-240 VAC or 240 VDC 700 W Titanium grade 200-240 VAC or 240 VDC • 600 W Platinum grade 100-240 VAC or 240 VDC |
| Cooling option | • Air cooling |
| Fan | Standard (STD) fans / High Performance Silver (HPR) fans / High Performance Gold (VHP) fans with up to 6 hot swappable fans |
| Size and weight |
• Height - 86.8 mm (3.41 in) • Width - 482 mm (18.97 in) Depth - 707.78 mm (27.85 in) - without baffles 721.62 mm (28.4 in.) - with baffle plate • Weight - maximum 28.6 kg (63.0 lb) |
| Contour specification | 2U rack server |
| Embedded management |
• iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module • Quick Sync 2 wireless module |
| Baffle plate | Optional LCD screen or safety shield |
| Mobility | OpenManage Mobile |
| Embedded NIC | 2 x 1 GbE LOM |
| Warranty | 3 years |
As a leading integrated IT solutions provider, we combine cutting edge in house manufacturing, dedicated R&D facilities, and a robust global distribution network to deliver comprehensive end to end infrastructure services. With a team of over 300 highly skilled professionals, including more than 150 certified engineers holding top tier certifications, we bring 15 years of proven expertise in designing, deploying, and maintaining mission-critical IT environments for enterprises worldwide. Our vertically integrated approach ensures seamless quality control from component sourcing to final implementation.
As authorized partners for Huawei, xFusion, Dell, HPE, and Lenovo, we provide:
