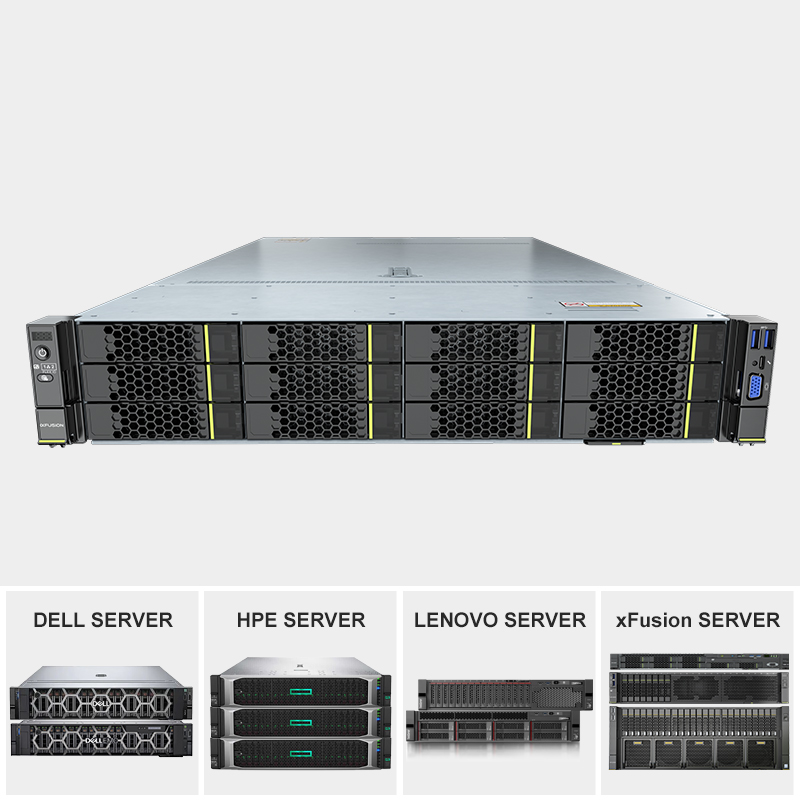

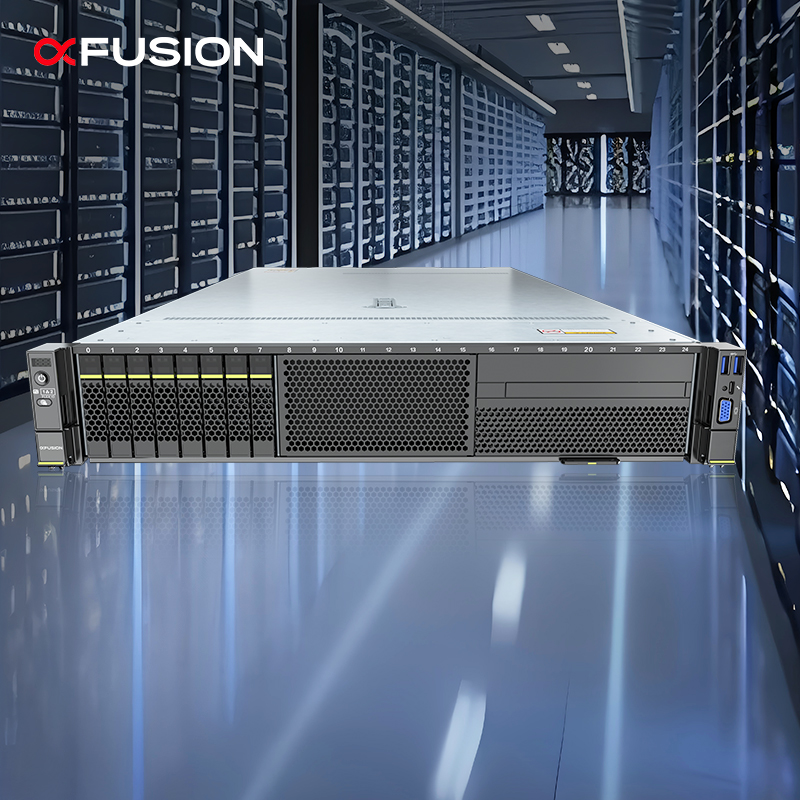

The FusionServer 2288H V6 is a 2U 2-socket rack server with flexible configurations, widely used for cloud computing, virtualization, database, and big data workloads. It supports 2-socket Intel Xeon Scalable processors, 32 DDR4 RAM, 14 PCIe expansion slots, and large local storage resources. It integrates intelligent power consumption management and full lifecycle management software to effectively reduce operations costs and improve return on investment.

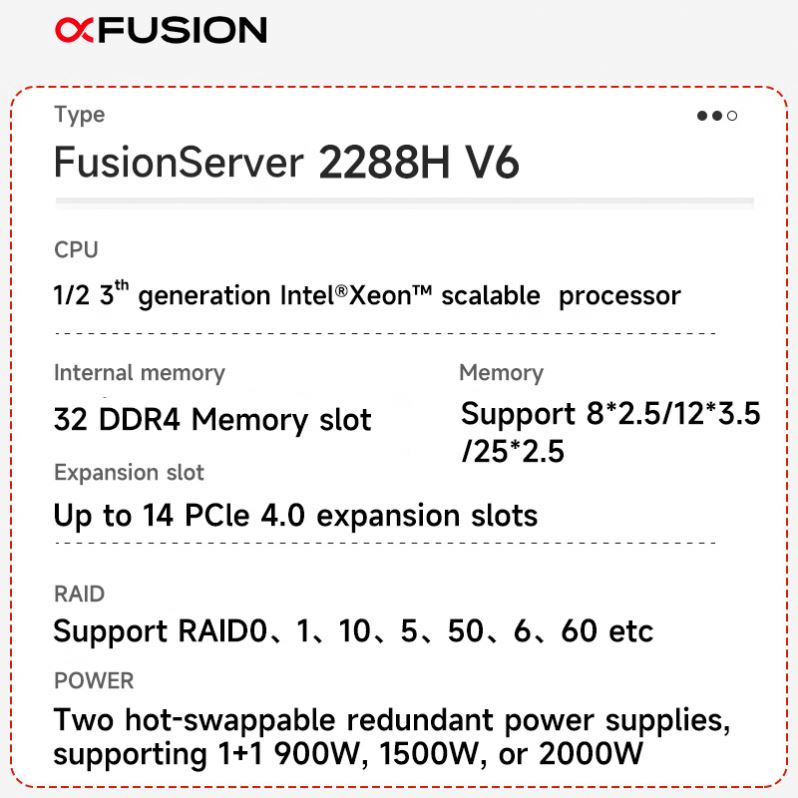

| Server Model | FusionServer 2288H V6 |
| Form Factor | 2U rack server |
| Processors | One or two 3rd Gen Intel Xeon Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W |
| Local Storage | Supports various drive configurations: 8-31 x 2.5-inch SAS/SATA/SSD, 12-20 x 3.5-inch SAS/SATA, 4/8/16/24 NVMe SSDs, and Dual M.2 SSDs. |

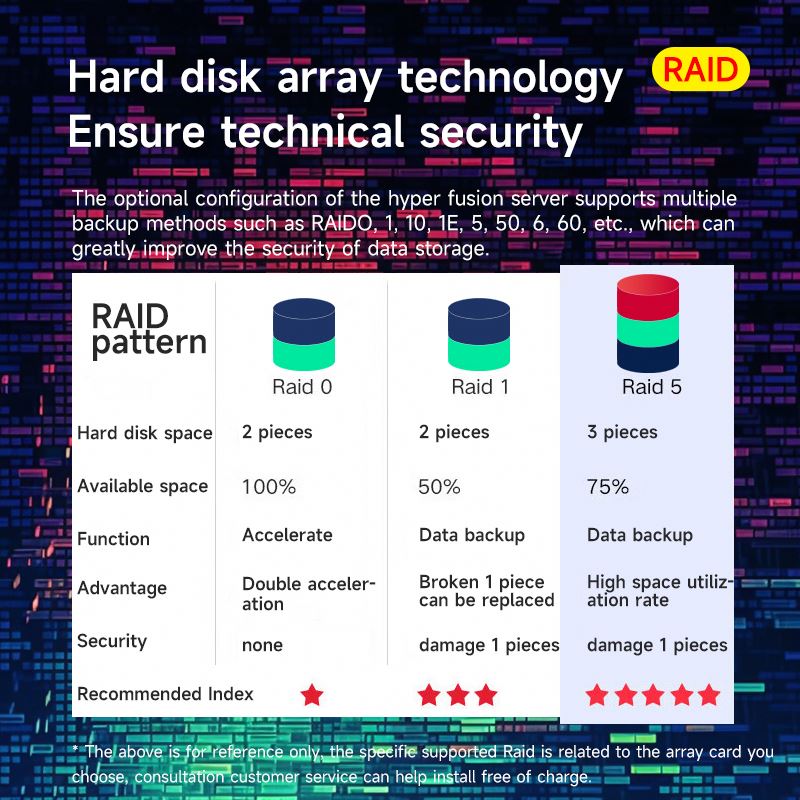

| RAID support | Supports RAID 0, 1, 10, 1E, 5, 50, 6, or 60. Optional supercapacitor for cache data power protection. |
| Network | Provides OCP 3.0 NICs; two FlexIO card slots support two OCP 3.0 network adapters. |
| PCIe Expansion | Max 14 PCIe 4.0 slots, including RAID card dedicated slots and OCP 3.0 dedicated slots. |
| Operating Temperature | 5°C to 45°C (41°F to 113°F) (ASHRAE Classes A1 to A4 compliant) |
